Water Treatment Dosing System

Name: Water Treatment Dosing System
Brand: Mini Dose Solution Pumps
Price: 125000.0 INR
Availability: InStock

Price 125000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Water Treatment Dosing System Specification

Inlet/Outlet
1/2 inch BSP (customizable)

Theory
Reciprocating Pump

Working Temperature
0-50C

Features
Dual tank system, corrosion-resistant, easy installation, maintenance-free, auto mixing stirrer

Speed
1440 RPM (motor-driven pumps)

Flow Rate
100 LPH

Frequency
50/60Hz

Max Suction
2-3 meters

Mounting Type
Floor Standing Skid

Fuel Tank Capacity
N/A, electric drive

Control System
Digital/Analog Control Panel with timer, on/off, dosing adjustment

Caliber
Standard

Noise Level
<70 dB

Head Size
Up to 40 meters

Discharge Pressure
5 BAR

Voltage
220 Volt (v)

Material
HDPE Tank, Stainless Steel/PP/SS316 Pump

Structure
Integrated Modular Skid-mounted System

Power
60-100W per pump

Standard
ISI / IP54 (Panel Protection)

Fuel Type
Electric

Pressure
Up to 7 bar (customizable as per pump)

Usage
Water Treatment, Chemical Dosing, Disinfection, pH Correction

Application
Water Purification Plants, ETP, STP, WTP, Agriculture, Industrial

Suction Type
Positive Displacement

Seals Type
PTFE / Viton (Depend on Chemical)

Priming
Self-priming design

Pump Type
Electromagnetic / Motor-driven Dosing Pump

Capacity
500 Liters (Each Storage Tank)

Panel Indicator
Power on/off, operation mode, trip indicator

Operation Mode
Manual/Automatic switching

Installation Location
Outdoor Compatible, Weather Proof

Safety
Overload Protection, Level Sensing Enabled

Tank Material
Virgin HDPE (Food Grade/UV Stabilized)

Stirrer Type
Electric Motorized Agitator with corrosion-proof shaft

Tank Insulation
Dual layer, thermal shield

Piping Material
PVC/UPVC/CPVC options

Pump Brand
International Standard Brands Used

About Water Treatment Dosing System

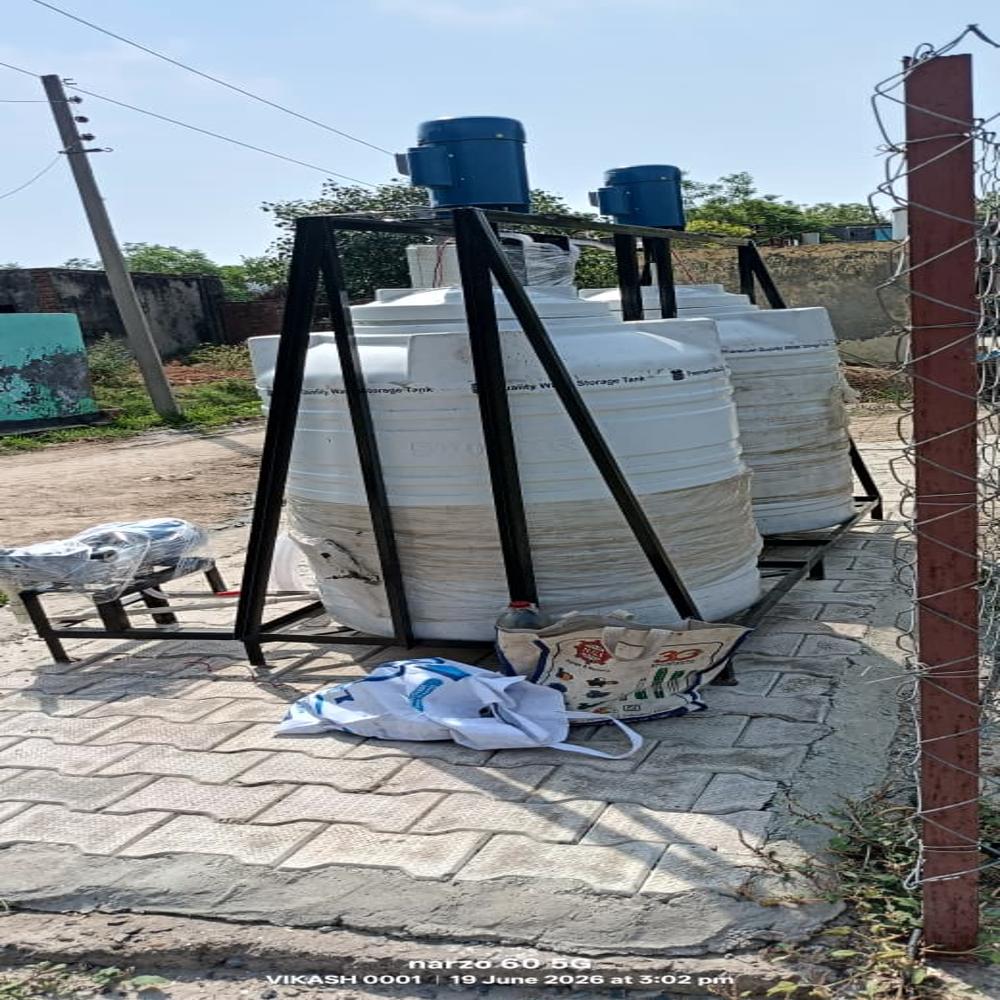

The skid-mounted chemical dosing system consists of dosing pumps. The system includes two dosing tanks, each equipped with a agitator for solution preparation and mixing. A centralized control panel with separate electrical connections for each pump and agitator is provided for independent operation. Each dosing pump is equipped with flow control valve, isolation valves, and complete suction/discharge fittings. The skid is further provided with proper lighting for night-time operation and convenient chemical dosing operations.

Advanced Dosing Solution with Dual Tank System

This integrated modular system is engineered for high-performance water purification and chemical dosing applications. With dual HDPE tanks and industrial-grade pumps, it supports continuous operation and minimizes downtime. The dual-layer thermal insulation shields contents from temperature fluctuations while the corrosion-proof agitator ensures consistent mixing of dosed chemicals.

User-Friendly Operation and Safety

The dosing system incorporates a digital or analog control panel, allowing easy selection of manual or automatic modes. Panel indicators for power, operation, and trip status, alongside level sensing and overload protection, empower users to monitor and maintain safe operating conditions with ease, even in challenging outdoor environments.

Versatile and Reliable Performance

Engineered for compatibility with various piping materials and chemicals, the system suits diverse applications, including ETP, STP, agriculture, and industrial water purification. The self-priming design, positive displacement suction, and customizable inlets/outlets ensure seamless installation and reliable dosing performance, with maintenance-free operation up to 50C.

FAQ's of Water Treatment Dosing System:

Q: How does the water treatment dosing system ensure consistent and accurate chemical dosing?

A: The system employs a digital or analog control panel for precise dosing adjustments and incorporates self-priming, positive displacement pumps for steady flow rates. An electric motorized agitator guarantees thorough mixing, while level sensing enables real-time monitoring, ensuring each dose is accurate and effective.

Q: What are the specific benefits of using dual-layer HDPE tanks in this dosing system?

A: The dual-layer HDPE tanks provide robust, food-grade chemical storage with effective thermal shielding. This structure minimizes heat loss or gain, reduces chemical degradation, prevents UV damage, and enhances safety for sensitive treatment processes in outdoor and industrial settings.

Q: When should the system operate in manual versus automatic mode?

A: Manual mode is ideal during setup, calibration, or troubleshooting, providing full user control over dosage and timing. Automatic mode can be selected for routine or continuous operation, ensuring repeatable, timed dosing with minimal supervision and reducing human error.

Q: Where can this dosing system be installed safely and effectively?

A: The weatherproof, outdoor-compatible design allows installation at water purification plants, ETP, STP, WTP, agricultural, and industrial sites. Its skid-mounted structure supports easy, floor-standing placement either indoors or exposed environments, with piping adaptable to site-specific requirements.

Q: What maintenance steps are required to ensure longevity of the system?

A: Routine visual checks for leaks, periodic cleaning of tanks and agitator, inspection of seals and pump components, and verification of overload protection and level sensors are recommended. Thanks to corrosion-resistant materials and self-priming pumps, overall maintenance needs remain minimal.

Q: How does the system provide operational safety for users?

A: Built-in overload protection, level sensing, and diagnostic panel indicators help prevent improper operation and unplanned shutdowns. Corrosion-resistant components, enclosed wiring, and adherence to ISI/IP54 standards enhance the system's overall safety and reliability during prolonged use.
